Quality Assurance
Comprehensive supply chain management system and incoming material quality control
Strict quality control throughout the entire production process

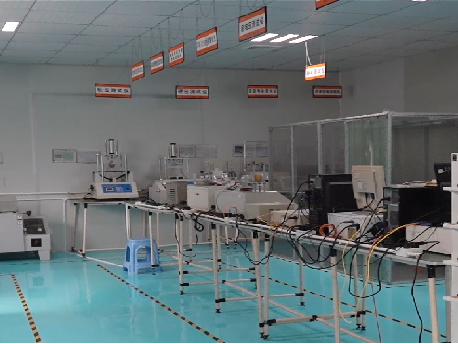

Equipped with a reliability testing laboratory
Complete and efficient after-sales service system
Environmental Testing Equipment (Testing Standards)
√ UV Aging Test: 8 hours of light exposure, 4 hours of condensation, cycled for 72 hours
√ Constant Temperature and Humidity Test: High temperature at 70°C, low temperature at -30°C, relative humidity at 93%
√ ESD (Electrostatic Discharge) Test: ±8kV air discharge, ±4kV contact discharge
√ Salt Spray Test: 5% saline solution at 35°C for 48 hours
√ Dust Test: 2 kg/m³ talcum powder with particle diameter <75μm for 8 hours
√ Thermal Shock Test: High temperature at 70°C, low temperature at -30°C, 1 hour per cycle, 24 cycles over 48 hours
√ Waterproof Test: Immersion in 1 meter of water for 30 minutes
Mechanical and Packaging Equipment (Testing Standards)
Free Drop Test: 10-meter height, 20,000 times
Tumble Test: 100,000 cycles
Button Durability Test: 4–6N force, 50,000 presses
Strap Tension Test: ≥8 kg, 2 times
Packaging Transportation Vibration Test: Frequency 2.5 Hz, amplitude 22 mm, 110 cycles/min
Micro Drop Test: 1 cm height, 30 times
Touch and Line Drawing Test: 250g force, 100,000 cycles
Connector Insertion/Removal Durability Test: 2,000 times
Abrasion Resistance Test: 300 cycles
